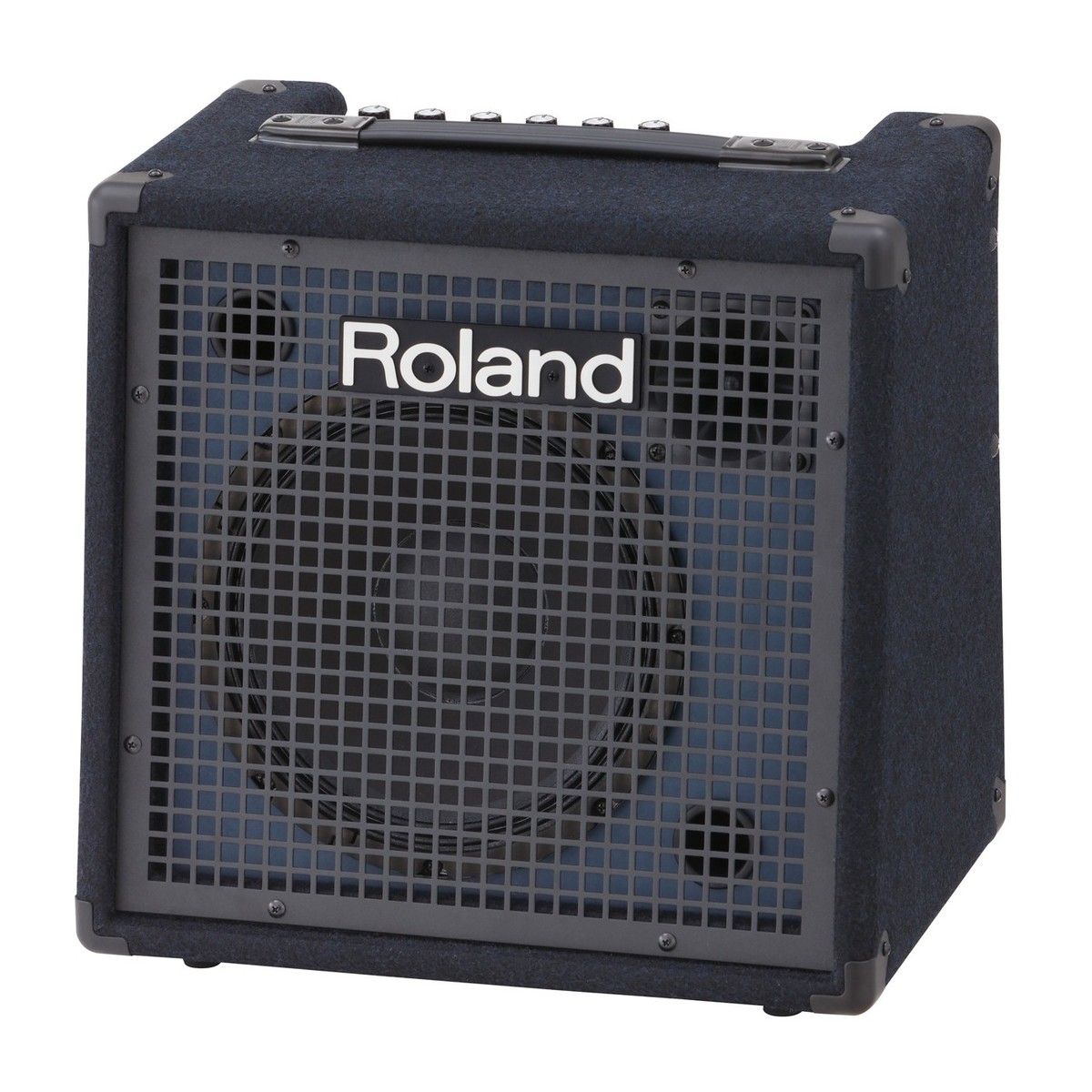

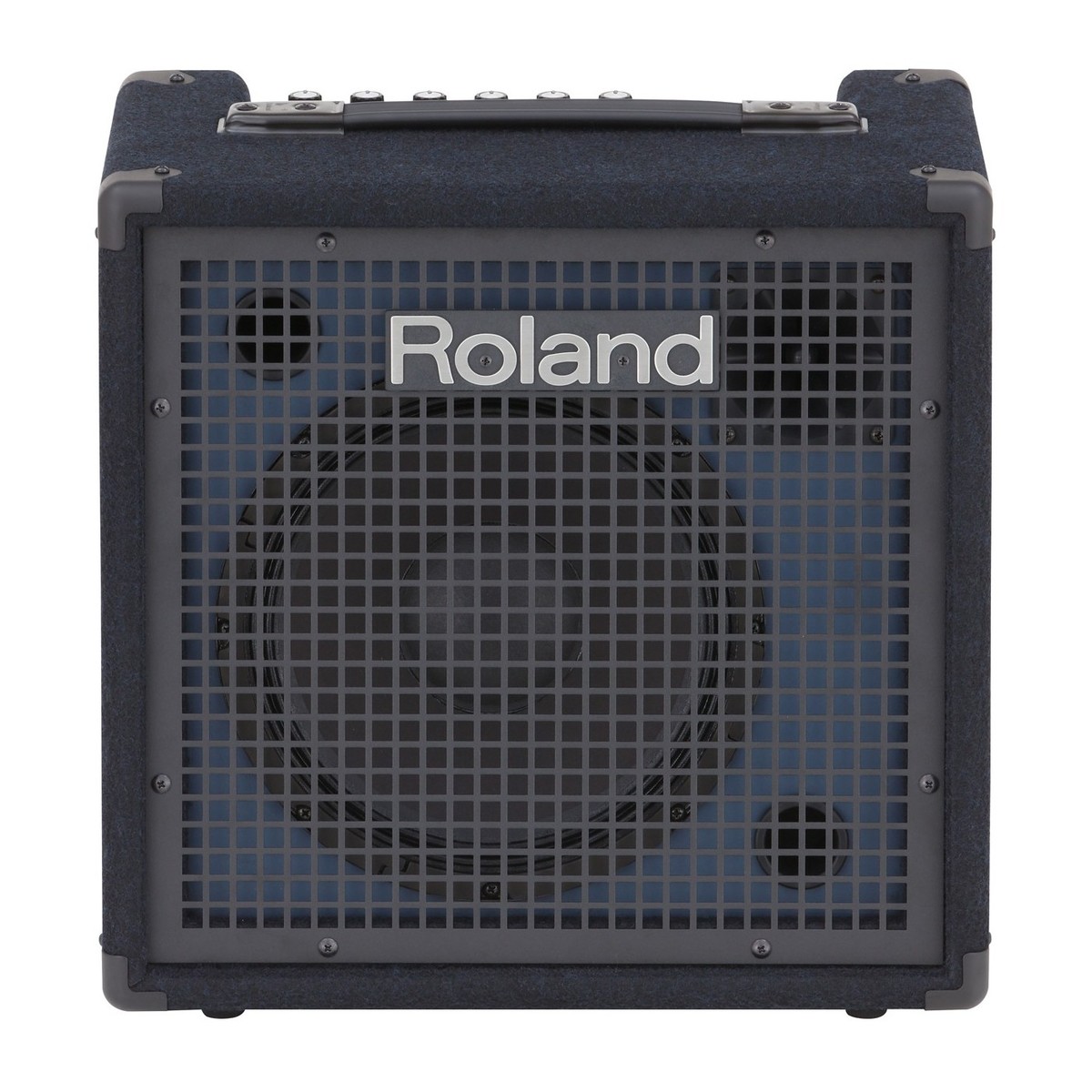

Roland KC-80 – 50W 10-inch Keyboard Amp

KC Series

The KC series of amplifiers are designed to be suitable for any playing environment. The rugged frames and heavy duty speaker grills keep the speaker protected from impact when on the road. The KC amplifiers’ large range of ports allow you to connect your keyboard, microphone and phone. The loud volume outputs can reach comfortable gigging volume, whilst each model’s EQ settings let you tweak to your preference. This series has become the industry standard for musicians who need a reliable amplifier for any venue.

Road Ready Design

All KC amplifiers are built to be taken on the road. The outer frame is made of a thick, heavy duty material that can withstand bumps in transit. The drivers are protected using a thick, steel grill. This series’ controls are specifically designed to offer quick solutions to your live sound. The master volume control keeps your overall level appropriately compressed, whilst the individual level volumes allow you to balance each input yourself. No matter what venue, you can achieve the correct frequency balance by using the on-board equaliser. For over 20 years gigging musicians have trusted the KC series.

Specifications

Dimensions

• Width:420mm
• Depth: 300mm
• Height: 410mm
• Woofer Diameter: 250mm
• Weight: 12.5KG

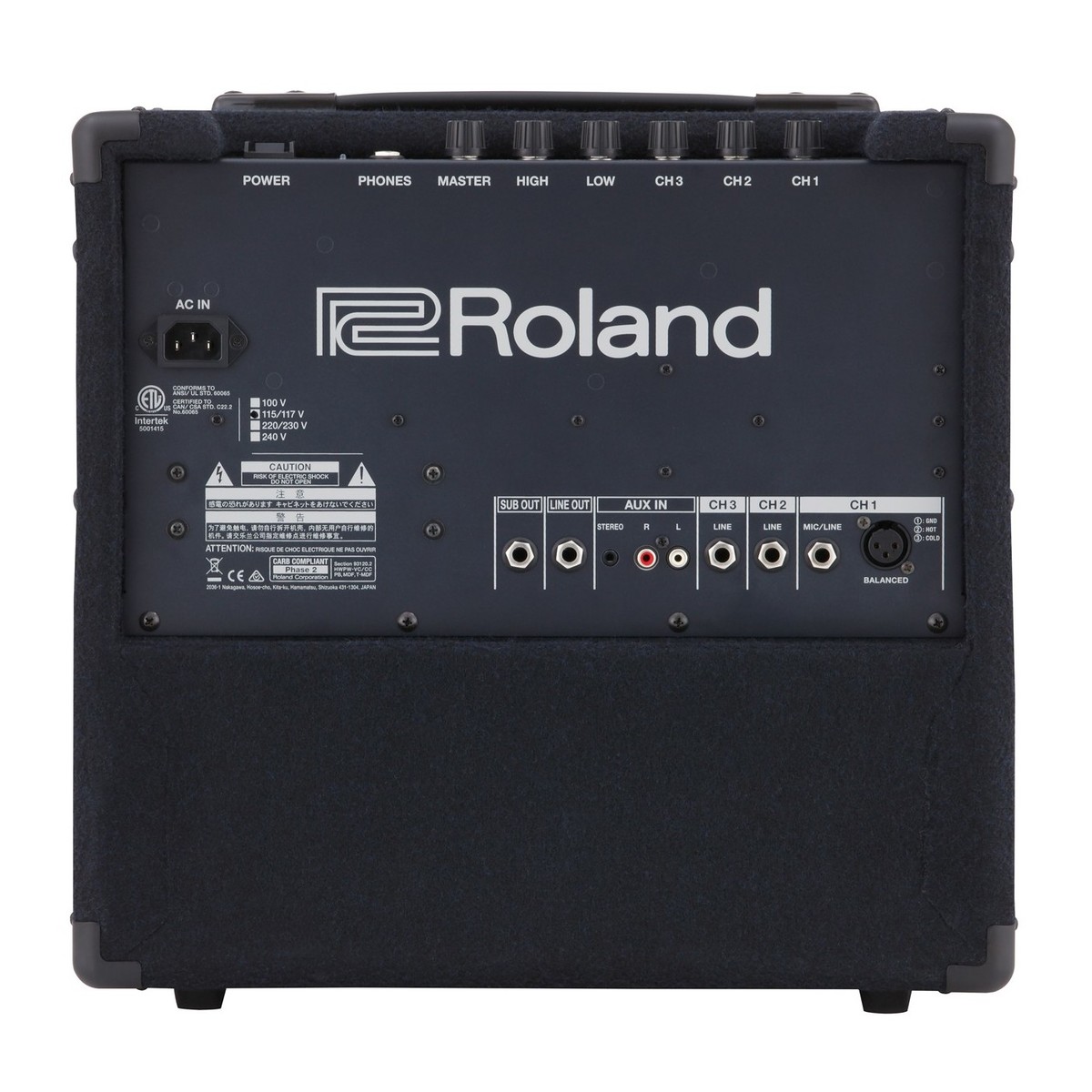

Connectors

• Channel 1: XLR
• Channel 1 (MIC/LINE): 1/4-Inch Phone
• Channel 2: 1/4-Inch Phone
• Channel 3: 1/4-Inch Phone
• Aux In (L, R): RCA Phono
• Aux In (Stereo): Stereo Miniature Phone
• Line Out: 1/4-Inch Phone
• Sub Out: 1/4-Inch Phone
• Phones Jack: 1/4-Inch TRS Phone

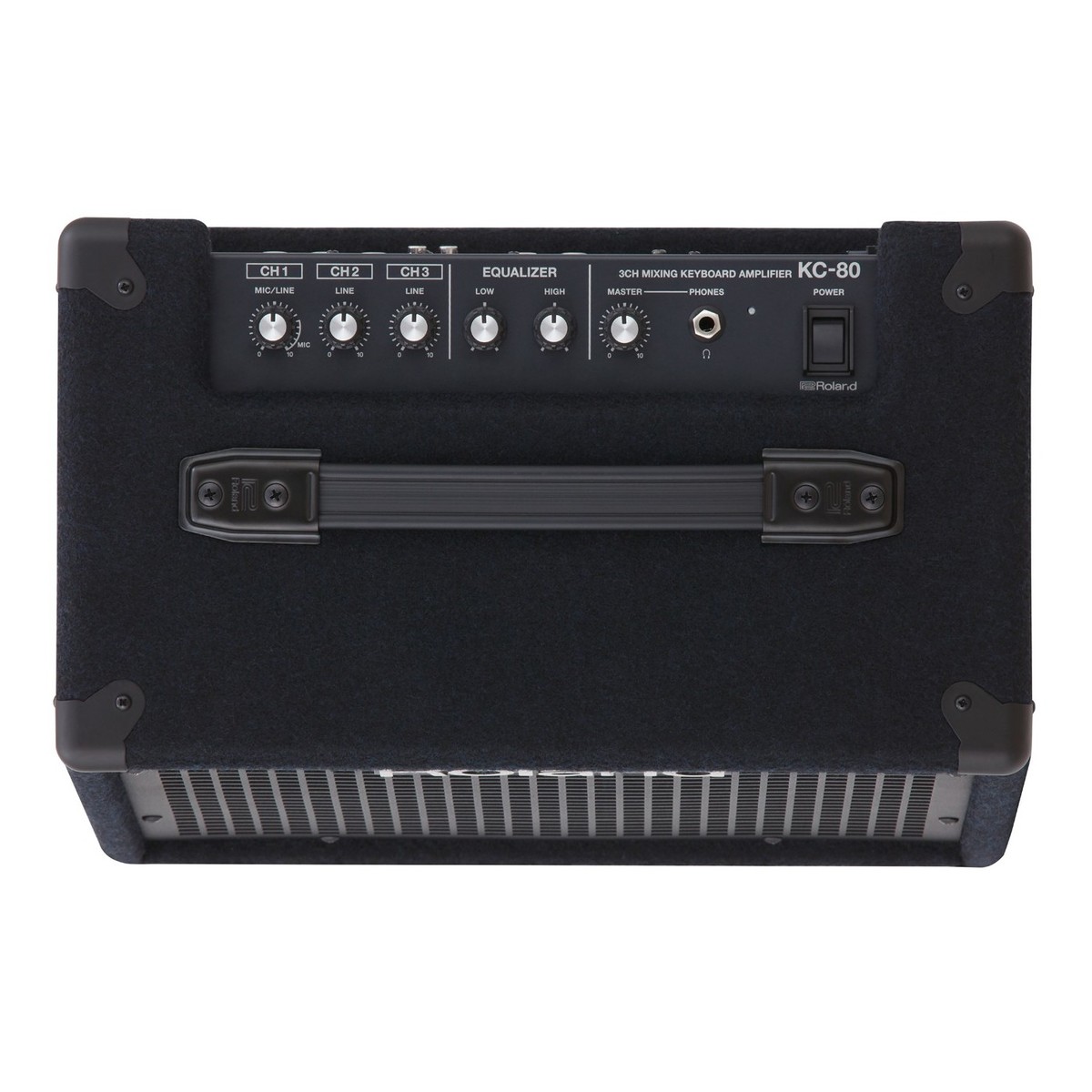

Controls

• Channel 1: Mic/Line Knob
• Channel 2: Line Knob
• Channel 3: Line knob
• Equaliser: Low, High
• Other Controls: Power Switch, Master Knob

Levels

• Channel 1: -50 to -20 dBu
• Channel 2: -20 dBu
• Channel 3: -20 dBu
• Aux In: -10 dBu
• Line Output Level: +4 dBu
• Sub Output Level: +4 dBu

General

• Power Output: 50W
• Indicator: Power
• Power Consumption: 50W
• Colour: Black
